Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper.

    (Refer to "FRONT BUMPER ".

  3. Loosening the head lamp mounting bolts (3EA) and disconnect the head lamp connector (B).

    Then, remove the head lamp assembly (A).

    NOTE:
    • Take care not to scratch the head lamp lens or fender.

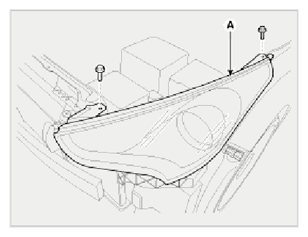

    Fig 1: Identifying Headlamp Fender
    G09135268Courtesy of HYUNDAI MOTOR AMERICA

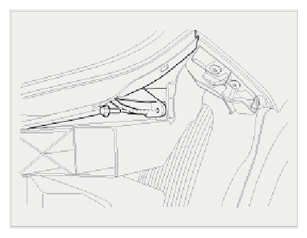

    Fig 2: Identifying Headlamp Connector
    G09135269Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Take care that holding clip (A) is not to be damaged.

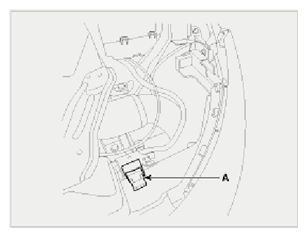

    Fig 3: Identifying Holding Clip
    G09135270Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the dust caps from the head lamp assembly after turning in the counter clock-wise direction.

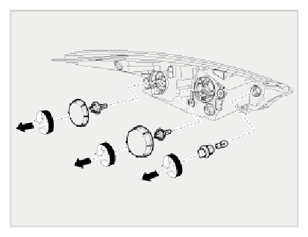

    Fig 4: Removing Dust Caps From Head Lamp Assembly
    G09135271Courtesy of HYUNDAI MOTOR AMERICA
