Repair Procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the lighting switch of the multifunction switch.

    (Refer to MULTIFUNCTION SWITCH

  3. With the front fog lamp switch, make sure that continuity exists between the terminals below.

    If continuity is not as specified, replace the multifunction switch.

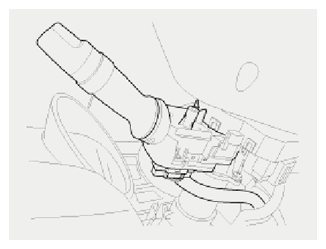

    Fig 1: Identifying Front Fog Lamp Switch
    G09135300Courtesy of HYUNDAI MOTOR AMERICA

    Fog lamp switch

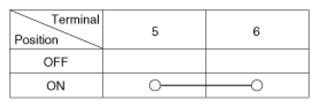

    Fig 2: Identifying Fog Lamp Switch Terminals Continuity Chart
    G09135302Courtesy of HYUNDAI MOTOR AMERICA
