Components and Components Location: Components: [LH]

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

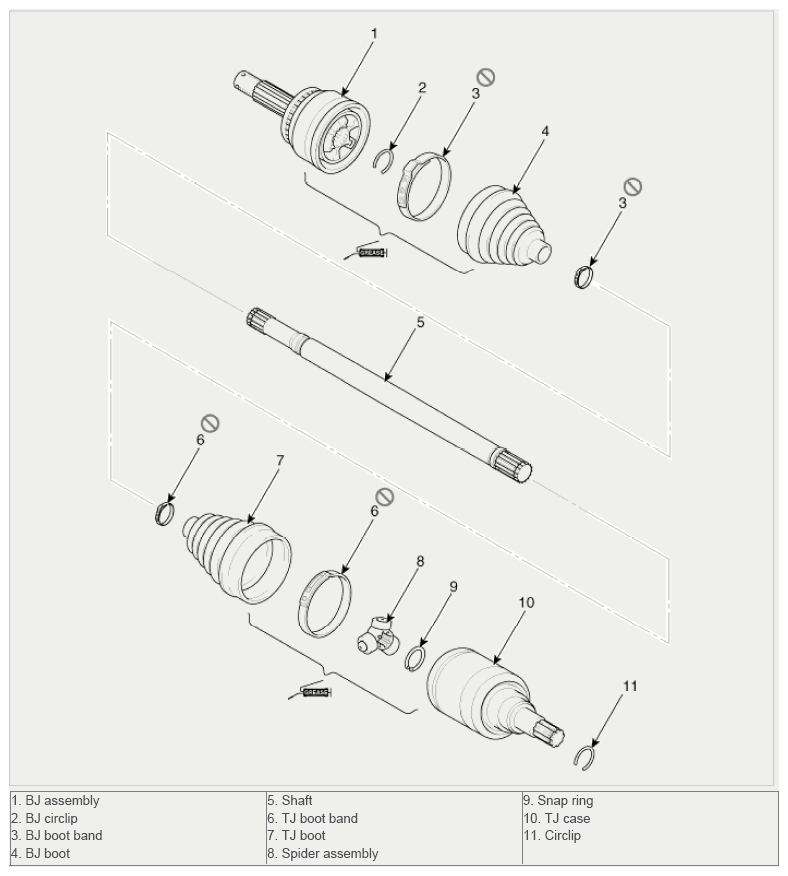

Fig 1: Identifying LH Driveshaft Related Components
G09150707Courtesy of HYUNDAI MOTOR AMERICA
