Components and Components Location: Components

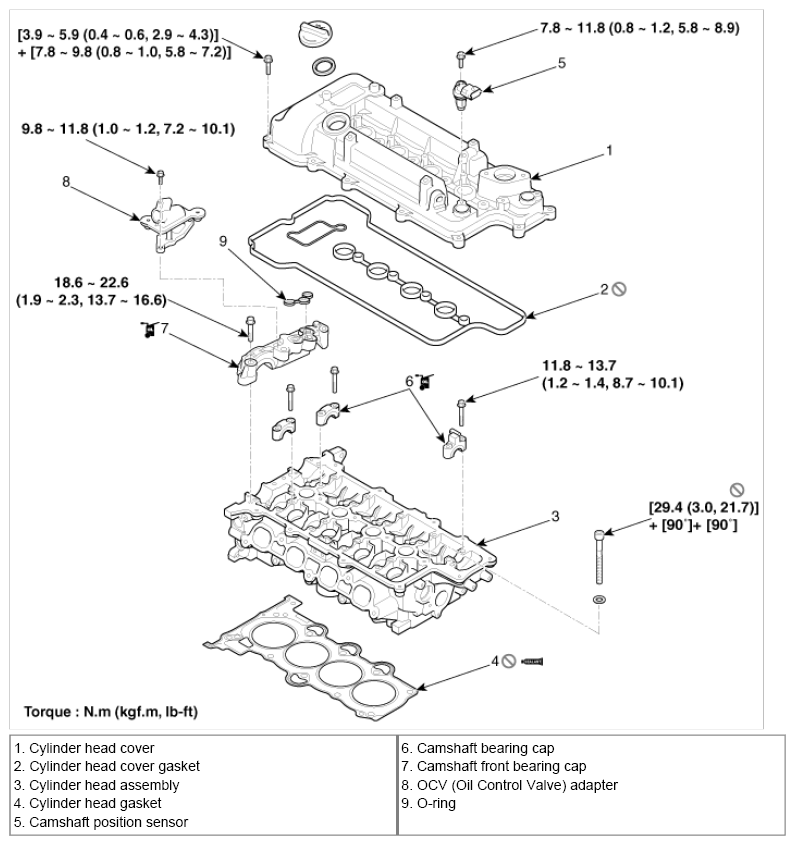

Fig 1: Cylinder Head Replacement Components With Torque Specifications (1 Of 2)
G08806621Courtesy of HYUNDAI MOTOR AMERICA

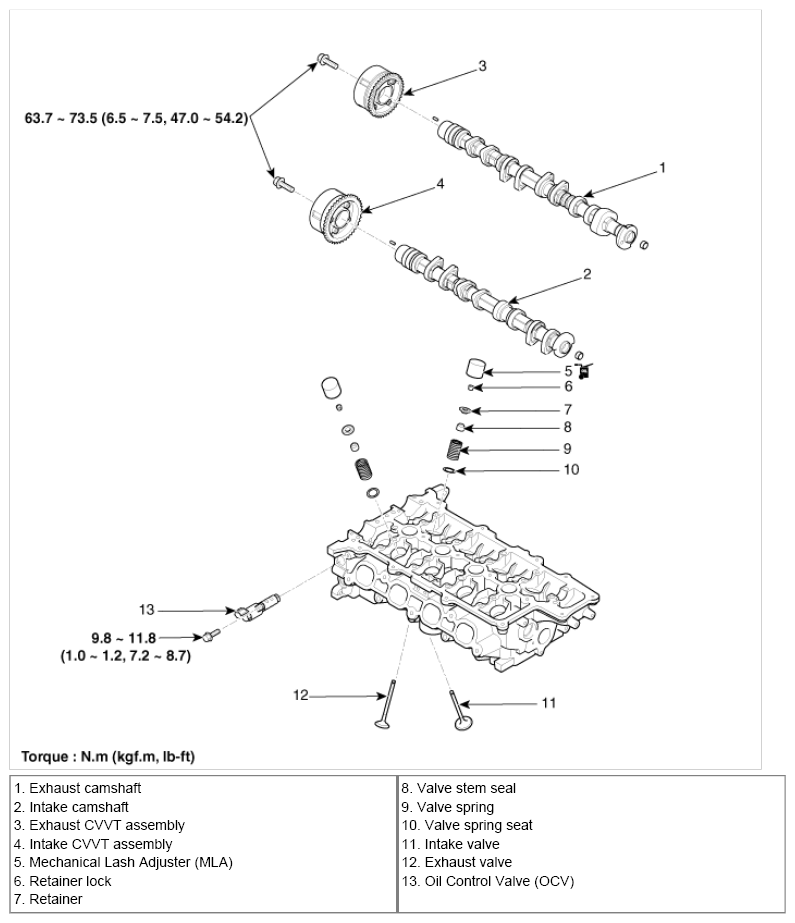

Fig 2: Cylinder Head Replacement Components With Torque Specifications (2 Of 2)
G08806622Courtesy of HYUNDAI MOTOR AMERICA
