Repair procedures: Removal

Turn the ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the accelerator position sensor connector (A).

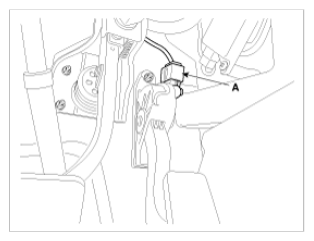

Fig 1: Identifying Accelerator Position Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the installation bolt (B) and nuts (C), and then remove the accelerator pedal module.

Fig 2: Identifying Accelerator Pedal Module Installation Bolt
Courtesy of HYUNDAI MOTOR AMERICA

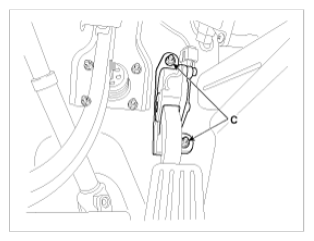

Fig 3: Identifying Accelerator Pedal Module Installation Nuts
Courtesy of HYUNDAI MOTOR AMERICA
