Repair procedures: Adjustment

Operate the horn, and adjust the tone to a suitable level by turning the adjusting screw.

NOTE: After adjustment, apply a small amount of paint around the screw head to keep it from loosening.

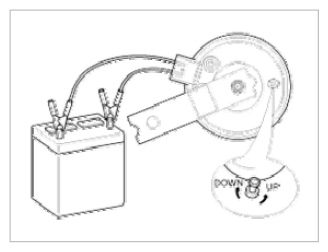

Fig 1: Checking Horn
G08811439Courtesy of HYUNDAI MOTOR AMERICA
