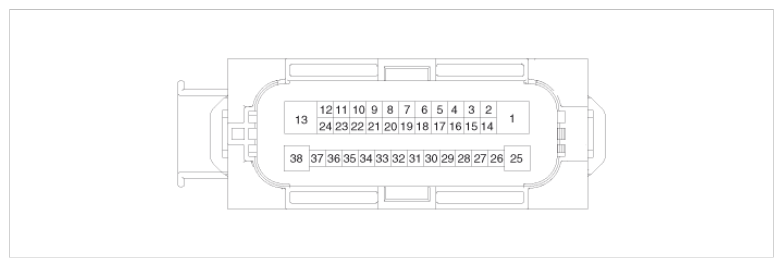

ESC connector input/output
| Connector Terminal | Specification | Remark | |
|---|---|---|---|
| No | Description | ||
| 29 | IGNITION1(+) | High level of wake up voltage: 4.5V < V < 16.0V Low level of wake up voltage: V < 2.4V Max. current: | < 50mA |
|
| 25 | POS. BATTERY 1. (SOLENOID) | Over voltage range: 17.0 ± 0.5V Operating voltage range: 10.0 ± 0.5V < V < 16.0 ± 0.5V Low voltage range: 7.0 ± 0.5V < V < 9.5 ± 0.5V Max. current: | < 40A Max. leakage current: | < 0.25mA |
|
| 1 | POS. BATTERY 2. (MOTOR) | Operating voltage range: 10.0 ± 0.5V < V < 16.0 ± 0.5V Rush current: | < 110A Max current: | < 40A Max leakage current: | < 0.25mA |
|
| 38 | GROUND | Rated current: | <550mA Max. current: | < 40A |
|
| 13 | PUMP MOTOR GROUND | Rush current: | < 110A Max current: | < 40A |
|
| 11 | SENSOR GROUND | Rated current: | <250mA | |
| 4 | SENSOR POWER | Max current Capability: | < 250mA Max voltage: V_BAT1 -0.8V |
|
| 23 | BRAKE LIGHT SWITCH | Input voltage (Low): V < 2.0V Input voltage (High): V > 6.0V Max. Input current: | < 3mA (@12.8V) |
|
| 10 | ESC ON/OFF SWITCH | ||
| 9 | BRAKE SWITCH | ||
| 22 | PARKING BRAKE SWITCH | Input voltage (Low): V < 2.0V Input voltage (High): V > 6.0V Max input current: | < 5mA (@12.8V) |
|
| 28 | SENSOR FRONT RIGHT OUTPUT | External pull up resistance: 1 KΩ < R Output duty: 50 ± 20% |
|
| 14 | CAN BUS LINE (LOW) | Max. Input current: | < 10mA | |
| 26 | CAN BUS LINE (HIGH) | ||
| 18 | SENSOR FRONT LEFT POWER | Output voltage: V_BAT1 -0.6V ~ V_BAT1 -1.1V Output current: Max 30mA |
|
| 34 | SENSOR FRONT RIGHT POWER | ||
| 19 | SENSOR REAR LEFT POWER | ||
| 33 | SENSOR REAR RIGHT POWER | ||
| 31 | SENSOR FRONT LEFT SIGNAL | Input current LOW: 5.9 ~ 8.4mA Input current HIGH: 11.8 ~ 16.8mA Frequency range: 1 ~ 2, 500Hz Input duty: 50 ± 10% |
|
| 21 | SENSOR FRONT RIGHT SIGNAL | ||
| 32 | SENSOR REAR LEFT SIGNAL | ||
| 20 | SENSOR REAR RIGHT SIGNAL | ||
| 12 | CAN SENSOR LINE (HIGH) | Max. input current: | < 10mA | |
| 24 | CAN SENSOR LINE (LOW) | ||
| 8 | HAC RELAY DRIVE | Max. current: | < 180mA Max output voltage: V< 1.2V |
|
| 36 | HAC RELAY STATE MONITORING | Input voltage (Low): V < 2V Input voltage (High): V > 6V Max input current: | < 10mA (@12.8V) |
|
