Repair procedures: Removal
- Remove the rear wheel and tire.
Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

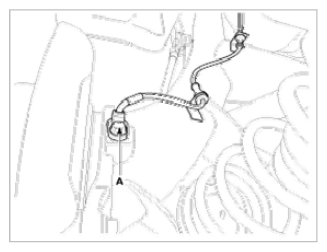

- Remove the rear wheel speed sensor mounting bolt (A).
Tightening torque: 6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.0 ~ 8.0 lb-ft)
- Remove the rear seat back. (Refer to the Body group - Seat)
- Remove the rear wheel housing trim. (Refer to the INTERIOR TRIM )
- Disconnect the rear wheel speed sensor connector.
- Installation is the reverse of removal.
