Roof Trim Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items.
1. Front seat
  (Refer to the "FRONT SEAT ")
2. Rear seat
  (Refer to the "REAR SEAT ")
3. Sunvisor
4. Overhead console
5. Garment hook assembly
6. Assist handle
7. Front pillar trim
  (Refer to the BD group - "INTERIOR TRIM ")
8. Front door scuff trim & Rear door scuff trim
  (Refer to the BD group - "INTERIOR TRIM ")
9. Center pillar lower trim & Center pillar upper trim
  (Refer to the BD group - "INTERIOR TRIM ")
10. Luggage side trim
  (Refer to the BD group - "INTERIOR TRIM ")
11. Rear pillar trim
  (Refer to the BD group - "INTERIOR TRIM ")
Remove the ECM mirror cover (B).
Disconnect the ECM mirror connector (A).

Fig 1: Removing ECM Mirror Cover And Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A) and the mounting clips in the front pillar.

Fig 2: Identifying Front Pillar Connectors
Courtesy of HYUNDAI MOTOR AMERICA

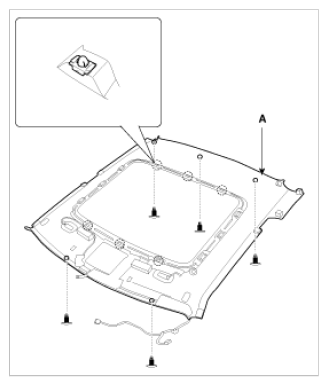

Remove the clips and roof trim (A).

Fig 3: Identifying Clips And Roof Trim
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are plugged in properly.
- Replace any damage clips.
