Luggage Side Trim Replacement

CAUTION:
  • Put on gloves to protect your hands.
  • Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the following items first:
    1. Rear seat assembly

      (Refer to the "REAR SEAT ")

    2. Front door scuff trim [LH]
    3. Center pillar lower trim [LH]
    4. Rear door scuff trim [RH]
    5. Rear transverse trim
  2. After loosening the mounting screws, then remove the luggage side trim.
  3. Installation is the reverse of removal.
    NOTE:
    • Replace any damage clips.

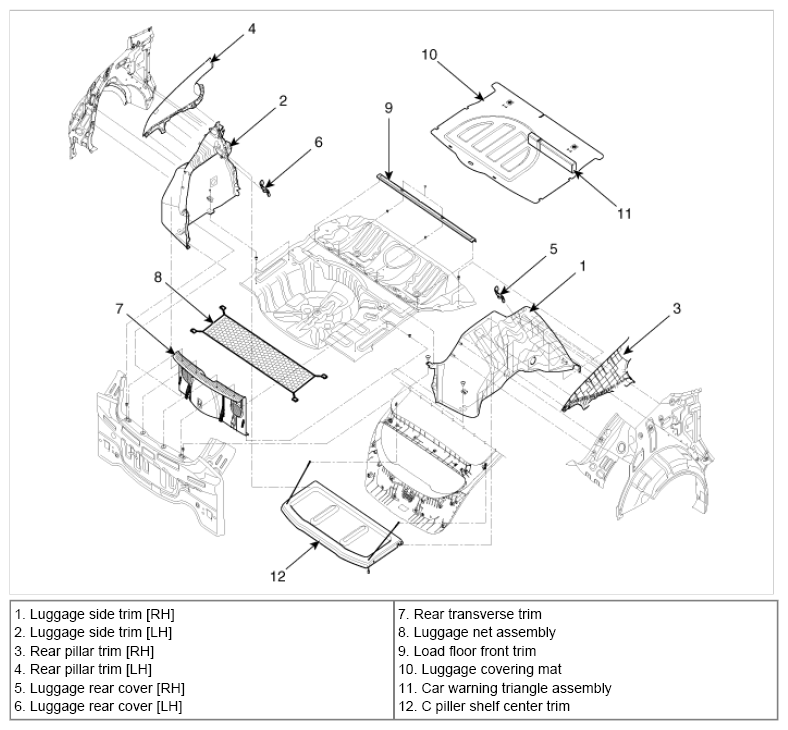

    Fig 1: Identifying Luggage Side Trim And Related Components
    G08811283Courtesy of HYUNDAI MOTOR AMERICA
