Center Pillar Trim Replacement

CAUTION:

Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the following items first:
1. Front door scuff trim
  (Refer to the BD group - "INTERIOR TRIM ").
2. Rear door scuff trim [RH]
  (Refer to the BD group - "INTERIOR TRIM ").
Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
The seat belt anchor pretensioner (A) be removed after pushing the lock pin (B) as arrow direction.
[LH]

Fig 1: Pushing Seat Belt Anchor Pretensioner Lock Pin (LH)
Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Fig 2: Pushing Seat Belt Anchor Pretensioner Lock Pin (RH)
Courtesy of HYUNDAI MOTOR AMERICA

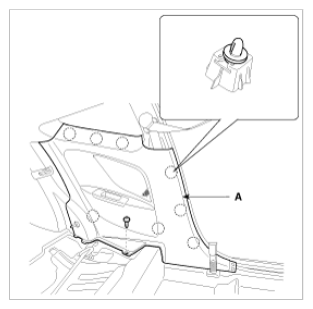

Using a screwdriver or remover, remove the center pillar lower trim (A).
[LH]

Fig 3: Identifying Center Pillar Lower Trim (LH)
Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Fig 4: Identifying Center Pillar Lower Trim (RH)
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the front seat belt upper anchor cover (A).
[LH]

Fig 5: Identifying Front Seat Belt Upper Anchor Cover (LH)
Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Fig 6: Identifying Front Seat Belt Upper Anchor Cover (RH)
Courtesy of HYUNDAI MOTOR AMERICA

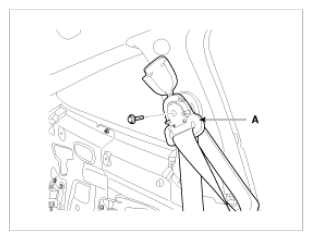

After loosening the mounting bolt, then remove the front seat belt upper anchor (A).
[LH]

Tightening torque: 39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

Fig 7: Identifying Front Seat Belt Upper Anchor (LH)
Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Tightening torque: 39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

Fig 8: Identifying Front Seat Belt Upper Anchor (RH)
Courtesy of HYUNDAI MOTOR AMERICA

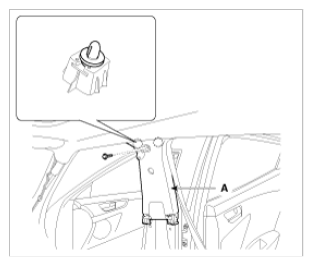

After loosening the mounting bolt, then remove the center pillar upper trim (A).
[LH]

Fig 9: Identifying Center Pillar Upper Trim (LH)
Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Fig 10: Identifying Center Pillar Upper Trim (RH)
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
