Shroud Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

After loosening the mounting screws, then remove the shroud assembly (A).

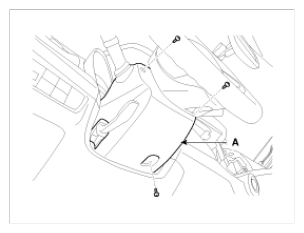

Fig 1: Identifying Shroud Assembly And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
