Glove Box Housing Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

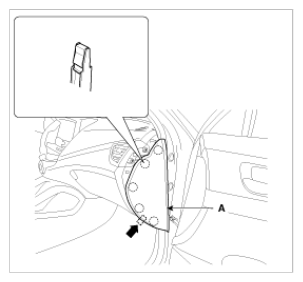

Using a screwdriver or remover, remove the crash pad side cover (A).

Fig 1: Identifying Crash Pad Side Cover
Courtesy of HYUNDAI MOTOR AMERICA

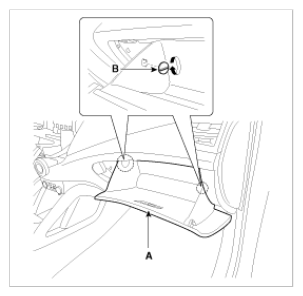

Disconnect the guide (B) from the glove box (A).

Fig 2: Disconnecting Guide From Glove Box
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the lift (A) from the glove box (B).

Fig 3: Identifying Glove Box And Lift
Courtesy of HYUNDAI MOTOR AMERICA

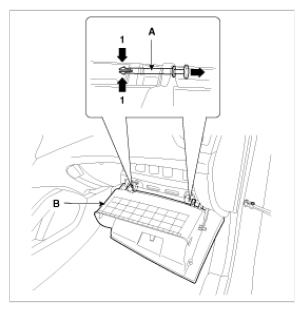

Disconnect the pin (A) and then remove the glove box (B).

Fig 4: Removing Glove Box
Courtesy of HYUNDAI MOTOR AMERICA

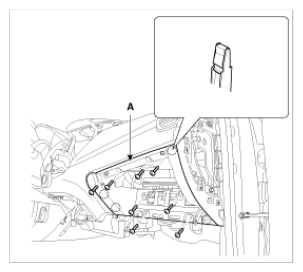

After loosening the mounting screws, then remove the glove box housing (A).

Fig 5: Identifying Glove Box Housing And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

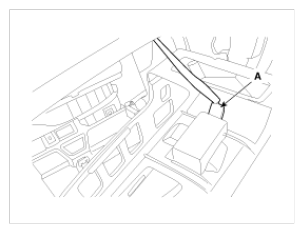

Disconnect the glove box lamp connector (A).

Fig 6: Identifying Glove Box Lamp Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damage clips.
