Floor Console Replacement: [A/T]

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the parking brake cover (A).

Fig 1: Identifying Parking Brake Cover
Courtesy of HYUNDAI MOTOR AMERICA

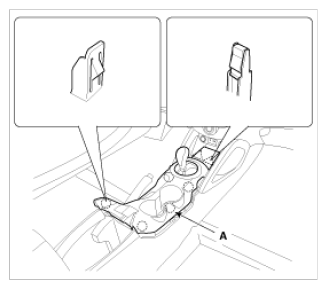

Using a screwdriver or remover, remove the console upper cover (A).

Fig 2: Identifying Console Upper Cover
Courtesy of HYUNDAI MOTOR AMERICA

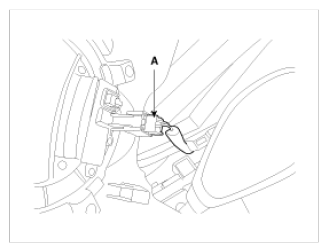

Disconnect the connector (A).

Fig 3: Identifying Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the console tray mat (A).

Fig 4: Identifying Console Tray Mat
Courtesy of HYUNDAI MOTOR AMERICA

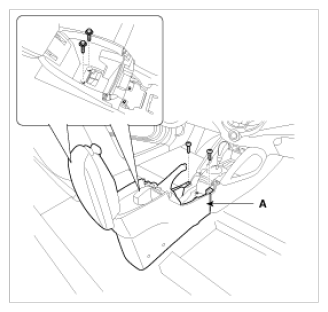

After loosening the mounting screws and bolts, then remove the floor console assembly (A).

Fig 5: Identifying Floor Console Assembly, Mounting Screws And Bolts
Courtesy of HYUNDAI MOTOR AMERICA

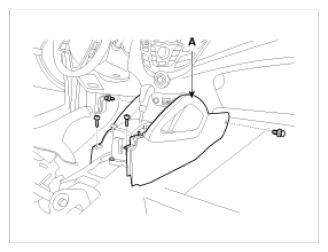

After loosening the mounting clips and screws, then remove the console side cover (A).

Fig 6: Identifying Console Side Cover, Mounting Clips And Screws
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
