Interior D

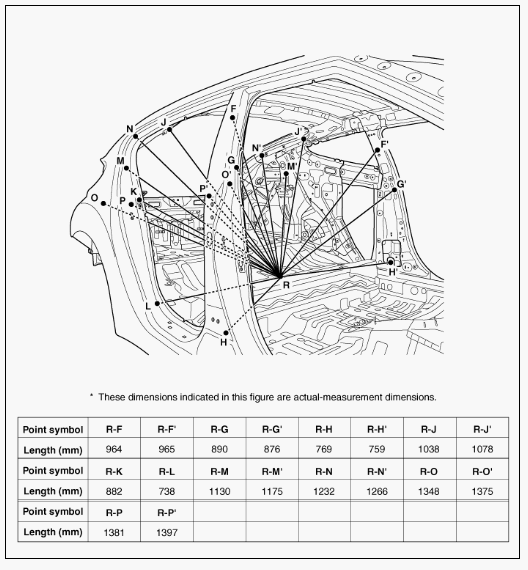

Fig 1: Identifying Body Interior D Actual Measurement Dimensions
G08811027Courtesy of HYUNDAI MOTOR AMERICA

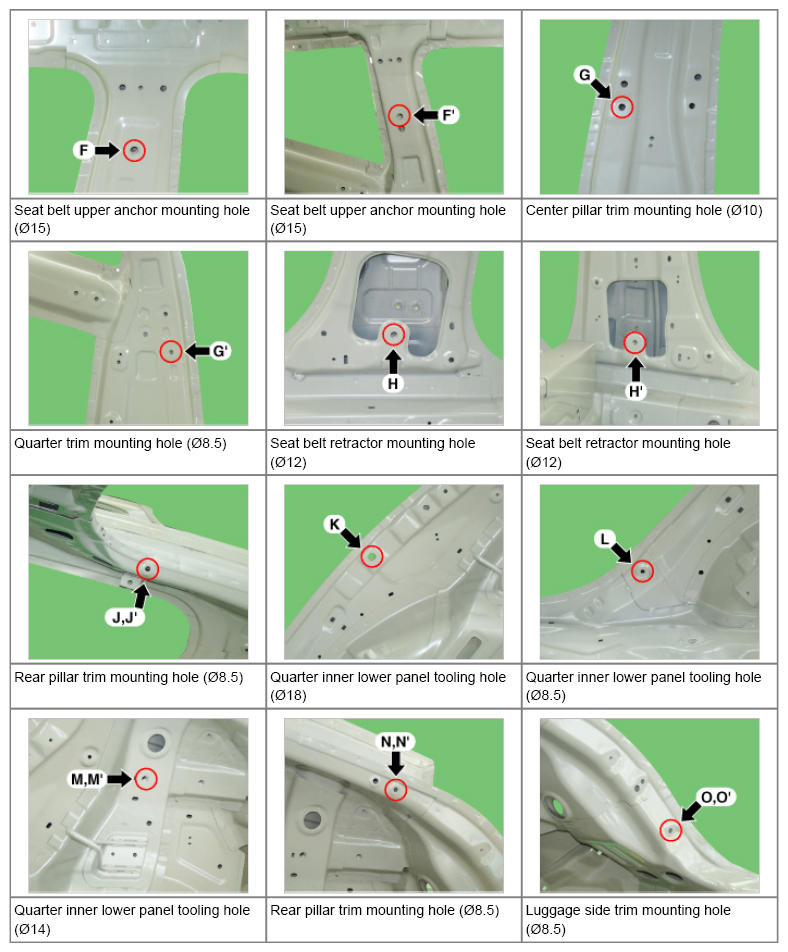

Fig 2: Locating Body Interior D Measuring Points (1 Of 2)
G08811028Courtesy of HYUNDAI MOTOR AMERICA

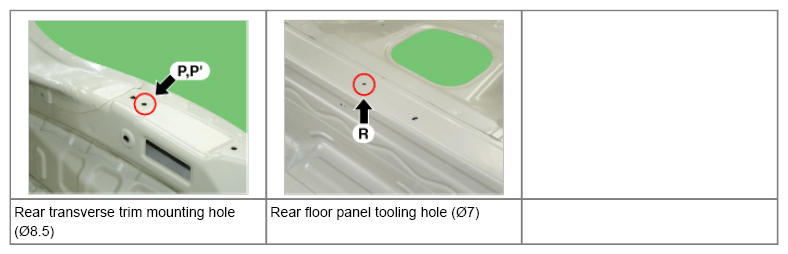

Fig 3: Locating Body Interior D Measuring Points (2 Of 2)
G08811029Courtesy of HYUNDAI MOTOR AMERICA
