Interior C
Interior C

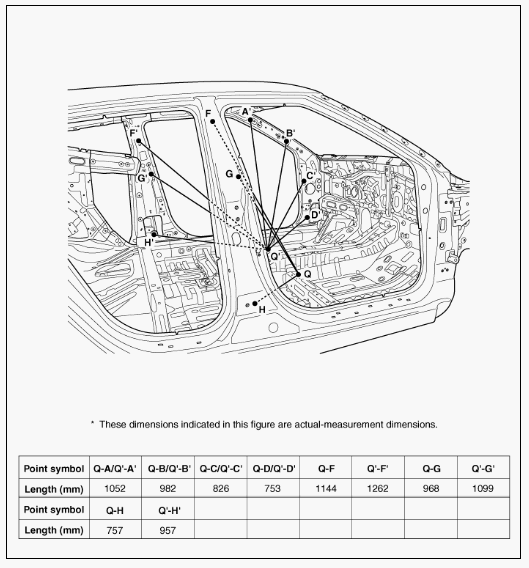

Fig 1: Identifying Body Interior C Actual Measurement Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

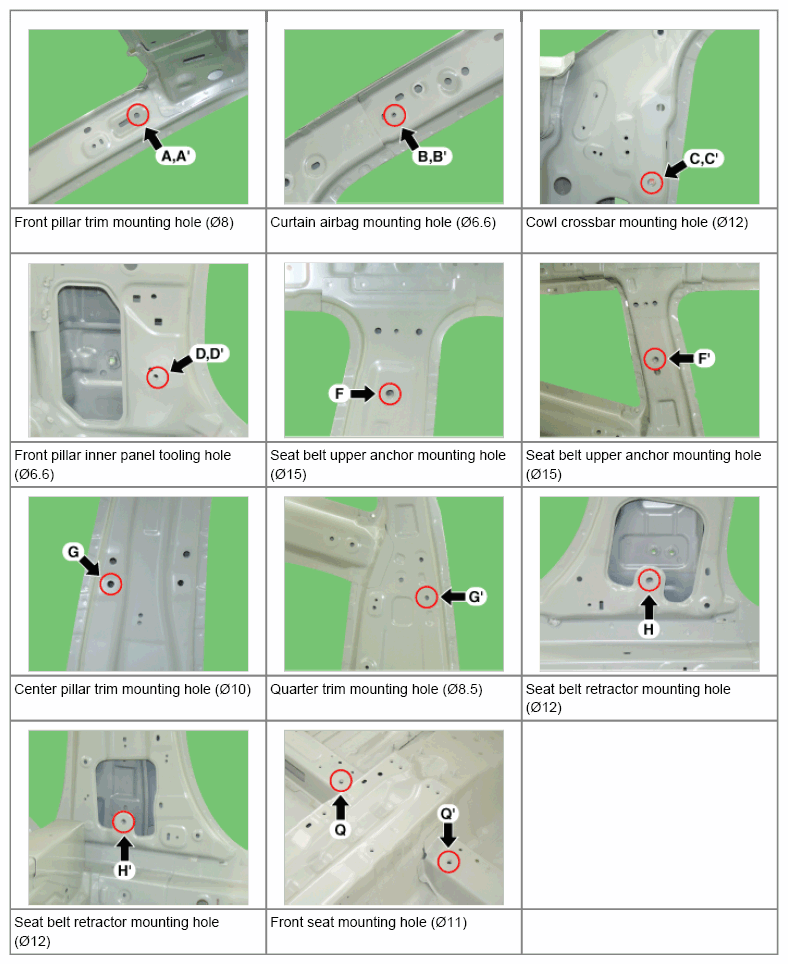

Fig 2: Locating Body Interior C Measuring Points
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
