Home >> Hyundai >> 2012 >> Veloster Standard Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart key unit >> Repair procedures >> Removal >> Trunk antenna

Trunk antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk transverse trim. (Refer to the "INTERIOR TRIM ")
  3. Disconnect the connector, then remove the trunk antenna (A) after loosening 2 nuts.

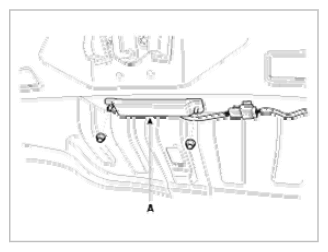

    Fig 1: Identifying Trunk Antenna And Nuts
    G08811548Courtesy of HYUNDAI MOTOR AMERICA
