Home >> Hyundai >> 2012 >> Veloster Standard Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart key unit >> Repair procedures >> Removal >> Buzzer

Repair procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the air duct.
  3. Remove the buzzer (A) after disconnecting the connector.

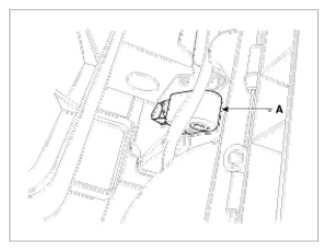

    Fig 1: Identifying Buzzer
    G08811550Courtesy of HYUNDAI MOTOR AMERICA
