General Information: General Description

This is DTC which is related with communication error between IPM and other units.

* Body CAN communication Control Units: IPM (Inter Panel Module), CLU (Cluster), SMK (Smart Key), HU (Head Unit).

^*1 CAN (Controller Area Network): CAN is serial bus communication type which links not only communication system but also control units each other.

^*2 LIN (Local Interconnect Network): LIN is serial communication type which is used in electrical control system. (This is less expensive.)

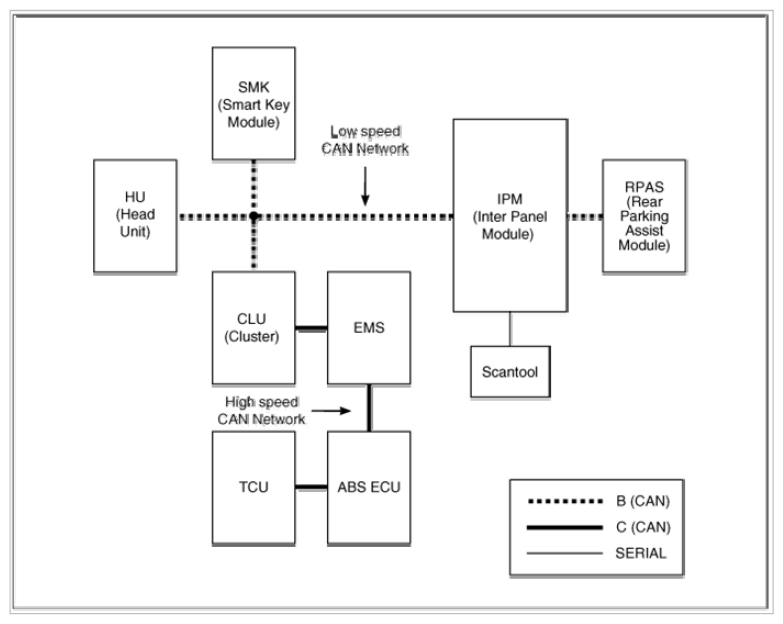

Fig 1: Low Speed CAN Network Communication Diagram

Courtesy of HYUNDAI MOTOR AMERICA
