Rear Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the rear door trim panel.
(Refer to the "REAR DOOR ")
Disconnect the connector from the switch.

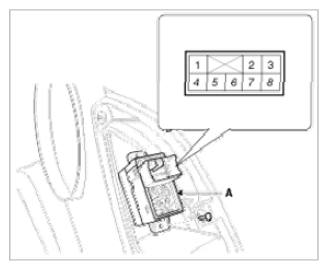

Fig 1: Identifying Rear Power Window Switch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

Fig 2: Rear Power Window Switch Continuity Reference Chart
Courtesy of HYUNDAI MOTOR AMERICA
Remove the power window switch after loosening 2 screws.
