Repair procedures: Removal

Remove the floor console assembly.
(Refer to the CONSOLE .)
Disconnect the sports mode connector (A).

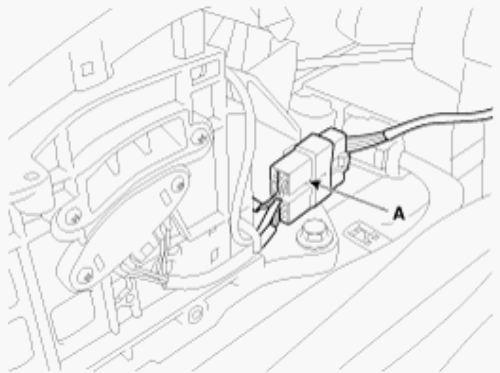

Fig 1: Identifying Sports Mode Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the control cable (A).

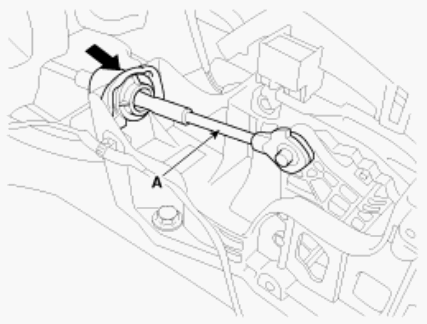

Fig 2: Removing Control Cable
Courtesy of HYUNDAI MOTOR AMERICA
Remove the bolt and then the shift lever assembly (A).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

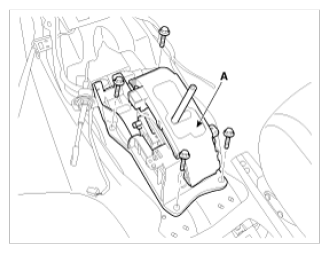

Fig 3: Identifying Shift Lever Assembly And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
