Repair procedures: Removal

Remove the following parts first:
1. Air cleaner assembly and air duct
  (Refer to the INTAKE SYSTEM & EXHAUST SYSTEM .)
2. Battery and tray
  (Refer to the CHARGING SYSTEM .)
3. ECM (Refer to the ENGINE CONTROL MODULE (ECM) .)
  NOTE: Place the gear shift lever and manual control lever to the N position when performing maintenance on the inhibitor switch.
Disconnect the inhibitor switch connector (A).

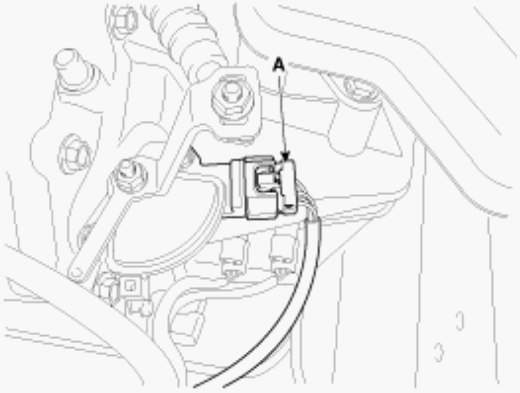

Fig 1: Identifying Inhibitor Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift cable mounting nut (A).

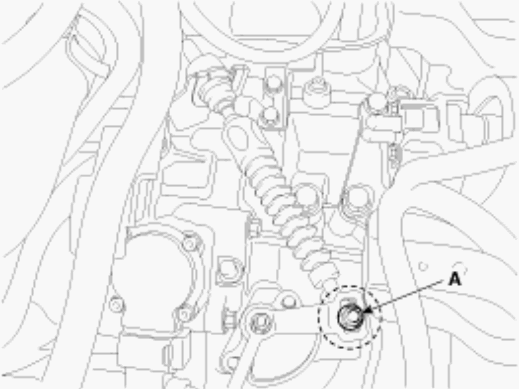

Fig 2: Identifying Shift Cable Mounting Nut
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the nut (A), and then remove the manual control lever (B).
Loosen the mounting bolt, and then remove the inhibitor switch (C).

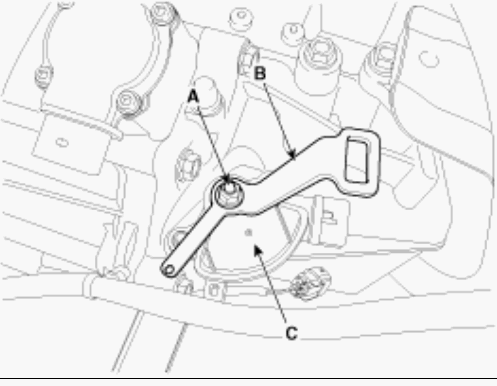

Fig 3: Identifying Inhibitor Switch, Manual Control Lever And Mounting Nut
