Repair procedures: Installation

  1. Installation is the reverse of removal.
    CAUTION:
    • Make sure that no debris falls into the hole (A).

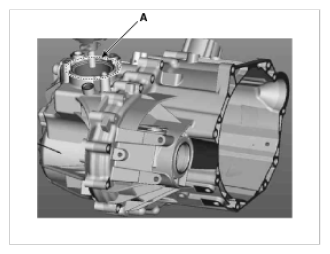

      Fig 1: Identifying Hole On Dual Clutch Transmission Assembly
      G08812091Courtesy of HYUNDAI MOTOR AMERICA
    • Check the angle of the gear actuator finger (A), and also check whether the transmission lever is in the N position.

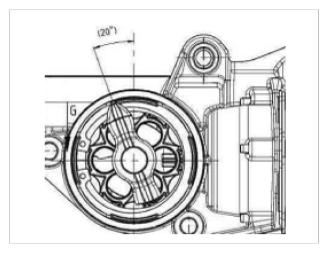

      Fig 2: Checking Angle Of Gear Actuator Finger
      G08812092Courtesy of HYUNDAI MOTOR AMERICA
