Dual Clutch Assembly: Removal

  1. Remove the DCT assembly in the vehicle.

    (Refer to Dual Clutch Transmission System - "DUAL CLUTCH TRANSMISSION (DCT) ")

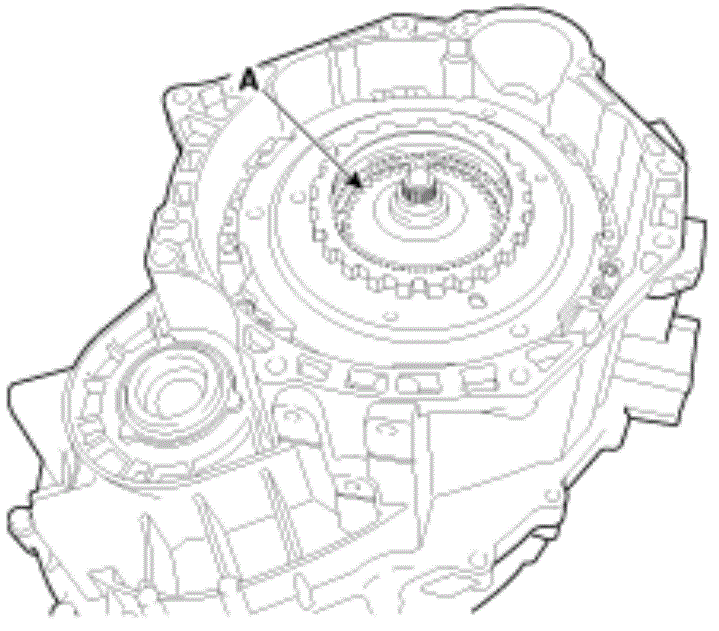

  2. Remove the retainer ring (A).
    G00634983Courtesy of HYUNDAI MOTOR AMERICA

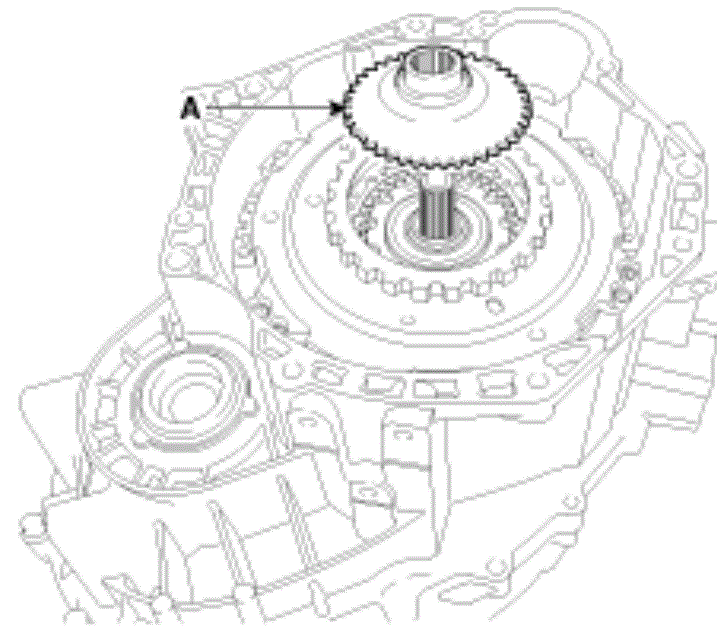

  3. Remove the hub (A).
    G00634984Courtesy of HYUNDAI MOTOR AMERICA

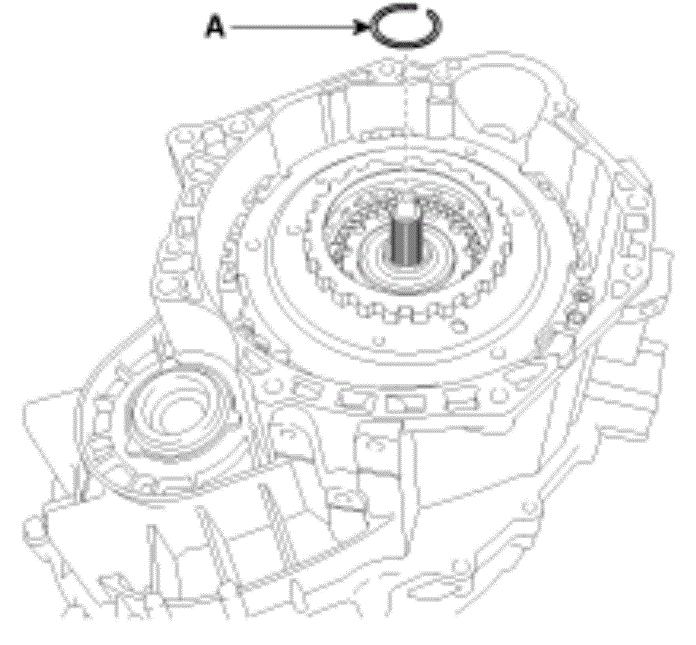

  4. Remove the snap ring (A).
    G00634985Courtesy of HYUNDAI MOTOR AMERICA

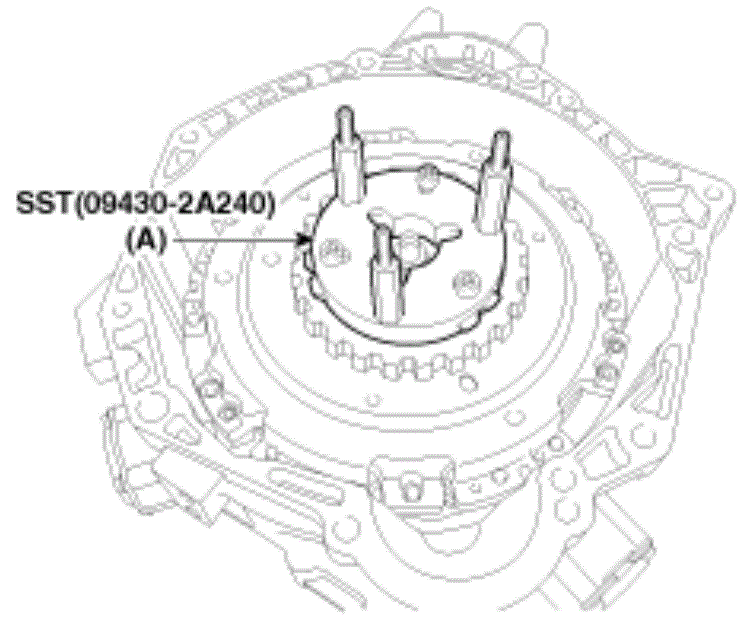

  5. Install the special service tool (09430-2A240) on the dual clutch assembly.
    G00634986Courtesy of HYUNDAI MOTOR AMERICA

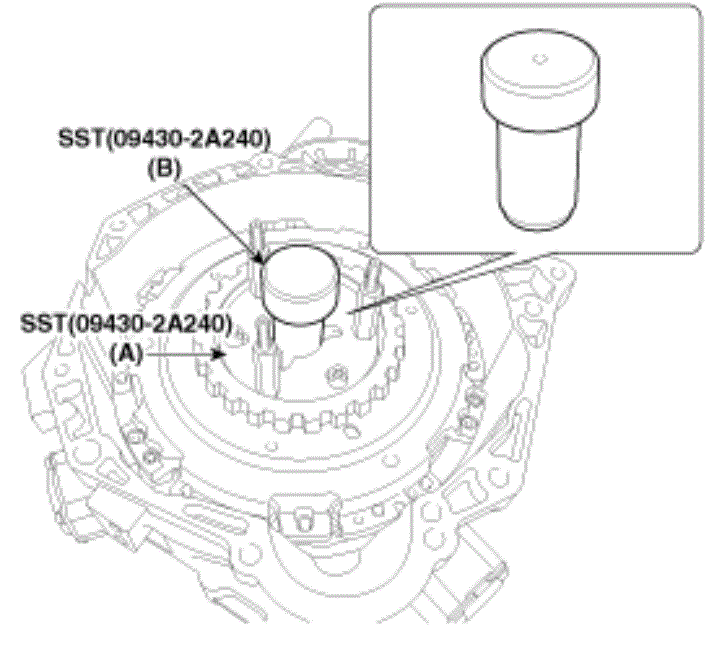

  6. Install the special service tool (09430-2A240) (B) on the special service tool (09430-2A240) (A).
    G00634987Courtesy of HYUNDAI MOTOR AMERICA

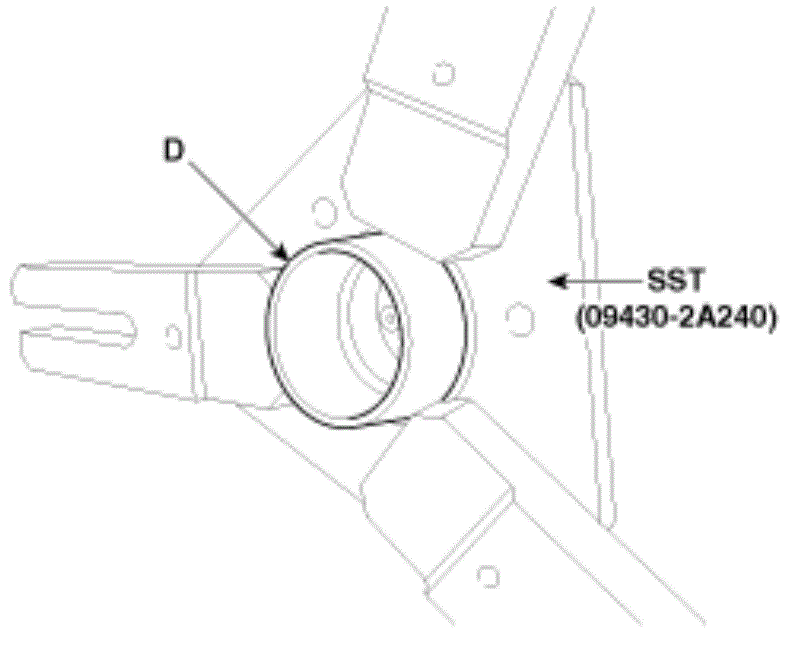

  7. Install the holder (D) inside the special service tool (09430-2A240).
    G00634988Courtesy of HYUNDAI MOTOR AMERICA

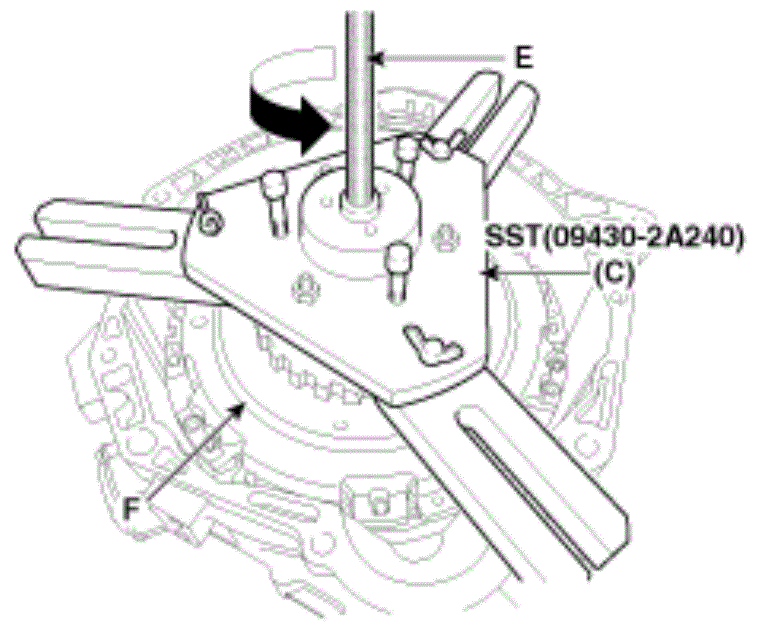

  8. Remove the dual clutch assembly (A) by rotating the shaft (B) of special service tool (09430-2A240) to the clockwise.
    G00634989Courtesy of HYUNDAI MOTOR AMERICA
