Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the seat side cover (A).

    (Refer to the "FRONT SEAT ")

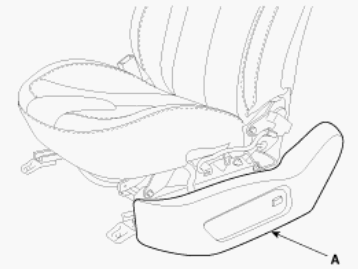

    Fig 1: Identifying Seat Side Cover
    G08811619Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the power seat control switch connector.

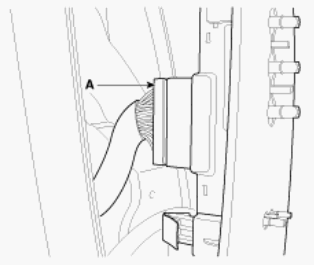

    Fig 2: Identifying Power Seat Control Switch Connector
    G08811620Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the power seat control switch (A) after loosening the mounting screw.

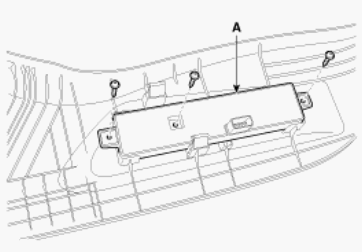

    Fig 3: Identifying Power Seat Control Switch And Mounting Screw
    G08811621Courtesy of HYUNDAI MOTOR AMERICA
