Repair procedures: Inspection

  1. With the lumbar support switch (A) in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the lumbar support switch.

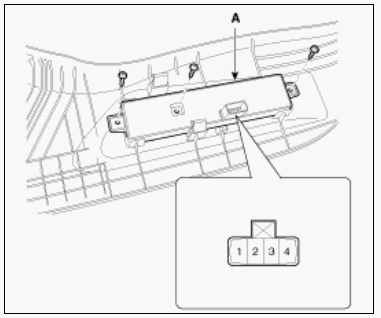

    Fig 1: Identifying Lumbar Support Switch And Connector
    G08811617Courtesy of HYUNDAI MOTOR AMERICA

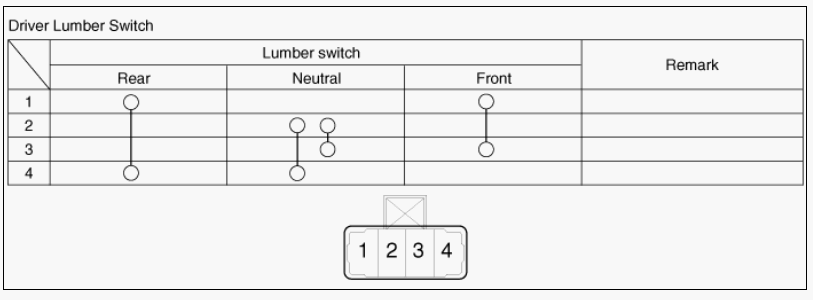

    Fig 2: Driver Lumbar Switch Continuity Reference Chart
    G08811618Courtesy of HYUNDAI MOTOR AMERICA
