Smart Key Control Module Connector End View (M13-C)

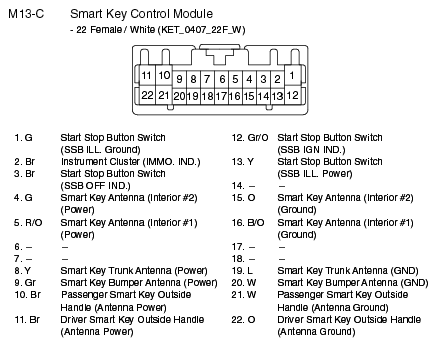

Fig 1: Smart Key Control Module Connector End View (M13-C)

G10776583

Courtesy of HYUNDAI MOTOR AMERICA
