Monitor Scantool Data

  1. Connect scantool to Data Link Connector (DLC).
  2. Self-diagnose 4WD ECM with scantool.
  3. Check the change of each wheel speed sensor's value according to the change of vehicle speed. (Refer to Fig 1.)
  4. If the sensor's value is stuck, self-diagnose VDC/ESC ECM with scantool. So if there are any DTCs related to the sensor, inspect it at first and check if the DTCs have been erased.
  5. In a case that there is no DTC, select "RPM" item among the service data. (Refer to Fig 2.)
  6. Check the change of the sensor's value according to a vehicle's speed.

    Specification:  It varies according to a vehicle's speed.

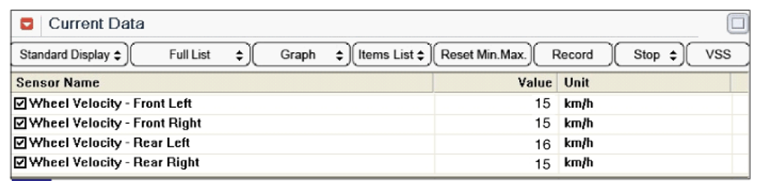

    Fig 1: Scantool Display - Wheel Speed Velocity (4WD)
    G06871386Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Scantool Display - Wheel Speed Sensor (VDC/ESC)
    G06871387Courtesy of HYUNDAI MOTOR CO.
  7. Is parameter displayed within specifications?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to VERIFICATION OF VEHICLE REPAIR .
