Home >> Hyundai >> 2012 >> Tucson GL, Standard Trans >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle System >> Manual Transaxle >> Components and Components Location (M5GF1) >> Components

Components and Components Location (M5GF1): Components

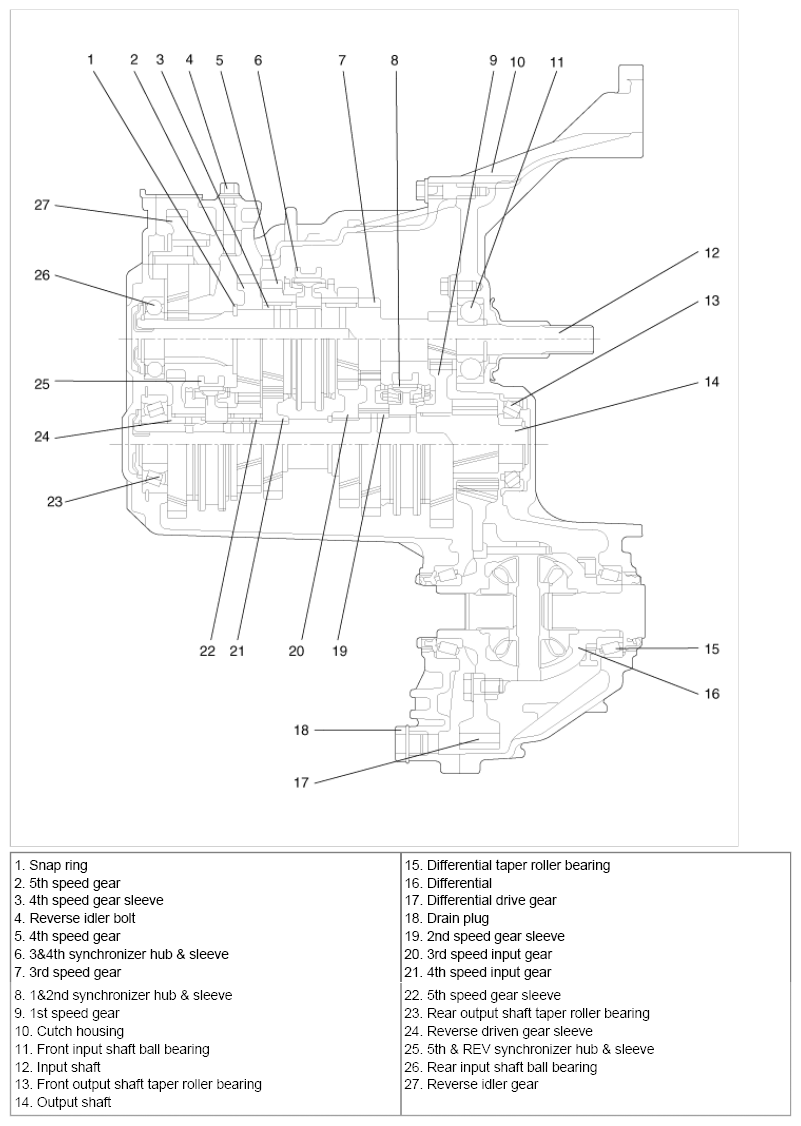

Fig 1: Identifying Manual Transaxle Components (M5GF1)

G06874945

Courtesy of HYUNDAI MOTOR CO.
