Repair Procedures: Removal

Remove the battery and the battery tray. (Refer to REMOVAL AND INSTALLATION .)
Remove the under cover (A).

Fig 1: Identifying Under Cover
Courtesy of HYUNDAI MOTOR CO.
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug.
(Refer to "AUTOMATIC TRANSAXLE SYSTEM ".)
Remove the valve cover (A) and eyebolt (B).
Tightening torque:
1. 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
2. 34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.6 lb-ft)
  CAUTION: The gasket of the eyebolt use new one.

  NOTE: Remove installation bolts in the engine room first and then remove others under the vehicle.

  Fig 2: Identifying Valve Body Cover And Eyebolt
  Courtesy of HYUNDAI MOTOR CO.
Remove the bolt (3ea) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

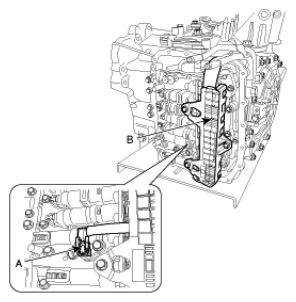

Fig 3: Identifying Solenoid Valve Connector And Oil Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the solenoid valve (A) after removing the solenoid support.

Fig 4: Identifying Solenoid Valve
Courtesy of HYUNDAI MOTOR CO.

CAUTION: When installing, apply the ATF oil or White Vaseline to the O-ring not to be damaged.
