Home >> Hyundai >> 2012 >> Tucson GL, Automatic Trans >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Front Strut Assembly >> Components and Components Location >> Components

Components and Components Location: Components

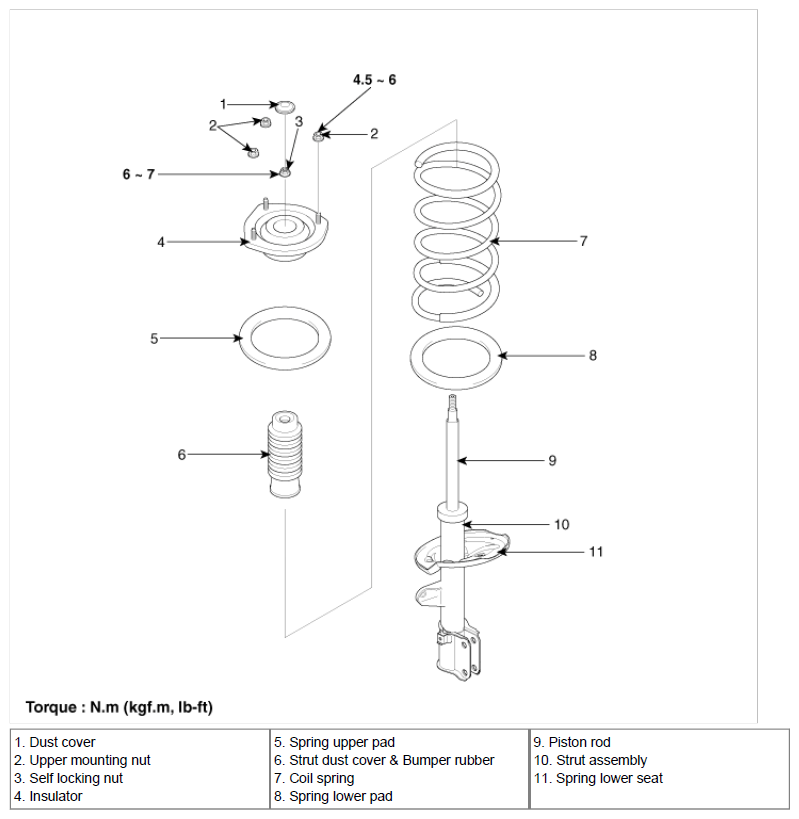

Fig 1: Front Strut Assembly Replacement Components With Torque Specifications

G06875140

Courtesy of HYUNDAI MOTOR CO.
