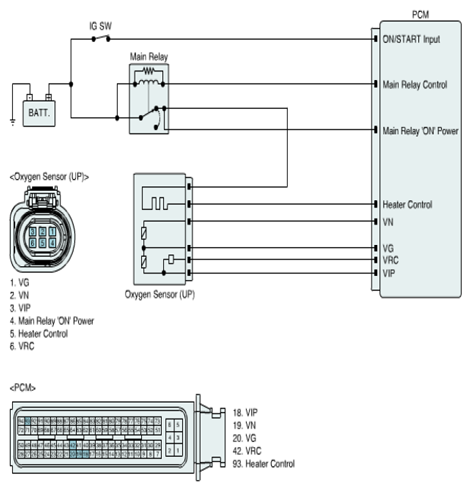

Home >> Hyundai >> 2012 >> Tucson GL, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 3) >> DTC P0133: O2 Sensor Circuit Slow Response (Bank 1/Sensor 1) >> General Information >> Diagnostic Circuit Diagram
