Home >> Hyundai >> 2012 >> Tucson GL, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Head Assembly >> Cylinder Head >> Components And Components Location >> Components

Components And Components Location: Components

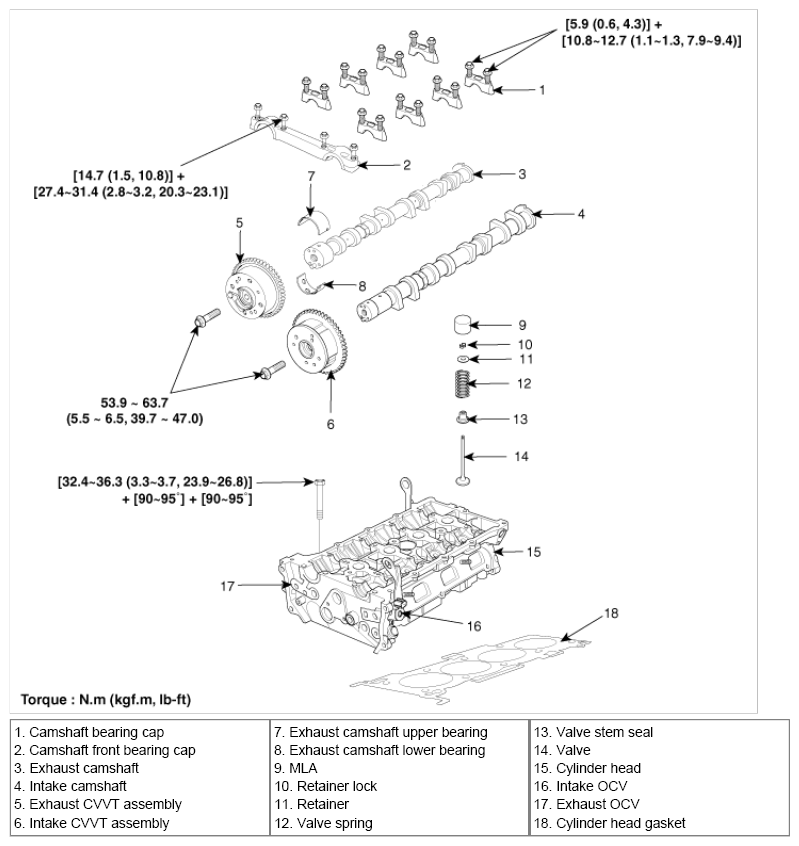

Fig 1: Cylinder Head Replacement Components With Torque Specifications

G06874176

Courtesy of HYUNDAI MOTOR CO.
