Components Location

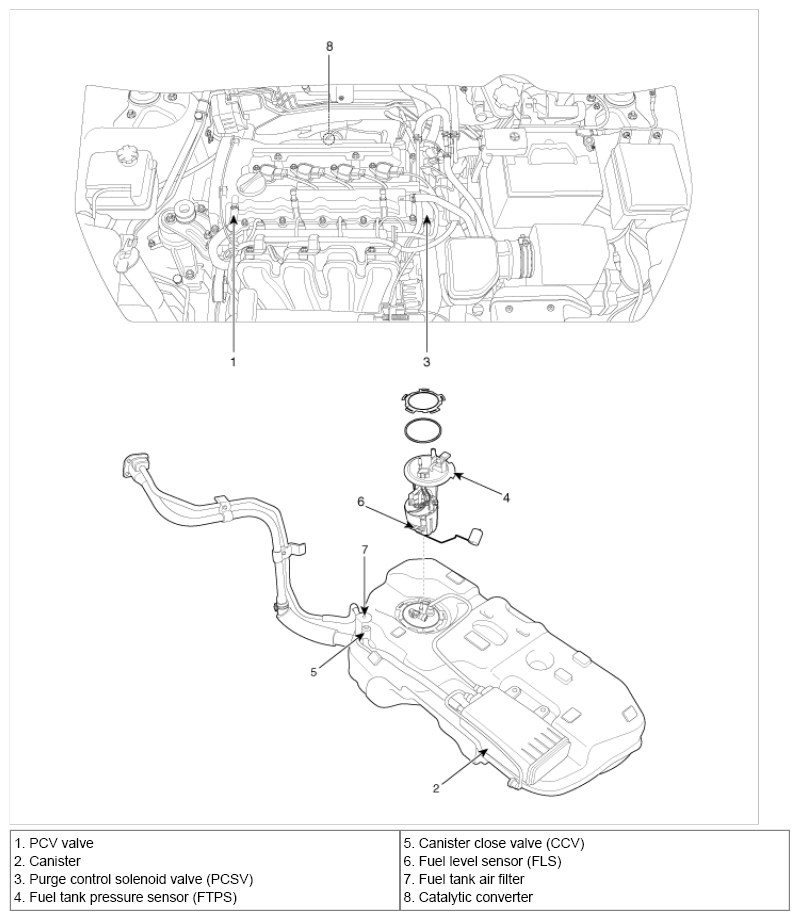

Fig 1: Identifying Emissions Control System Components (1 Of 2)
G06873130Courtesy of HYUNDAI MOTOR CO.

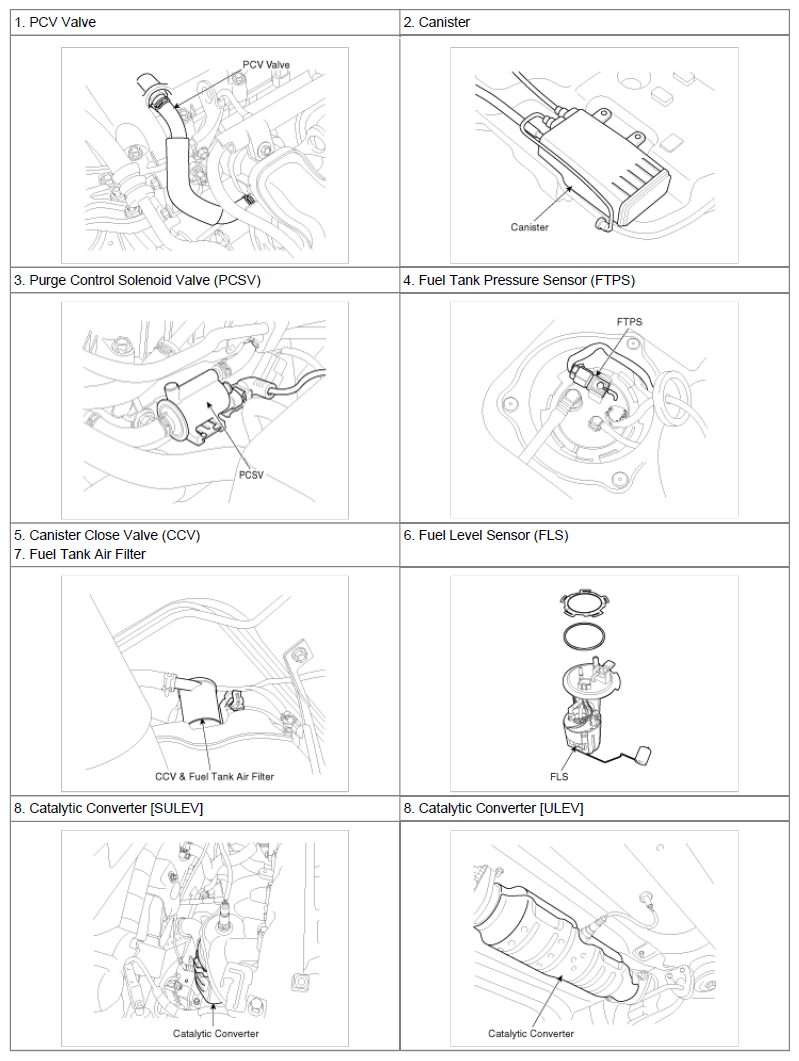

Fig 2: Identifying Emissions Control System Components (2 Of 2)
G06873131Courtesy of HYUNDAI MOTOR CO.
