Schematic Diagram: Notes

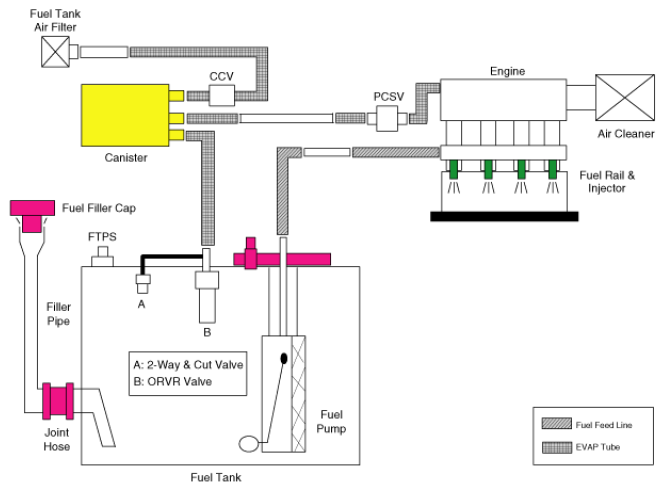

Fig 1: Evaporative Emission Control System Schematic Diagram

G06874329

Courtesy of HYUNDAI MOTOR CO.
