Home >> Hyundai >> 2012 >> Tucson GL, Automatic Trans >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Hub Knuckle Tone Wheel >> Components and Components Location >> Components

Components and Components Location: Components

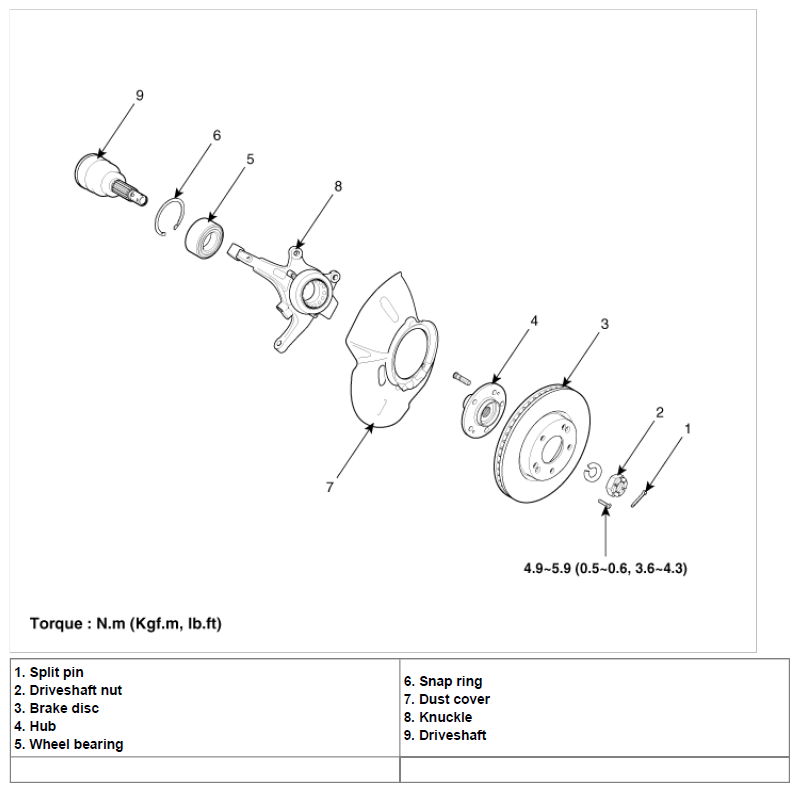

Fig 1: Front Hub Knuckle Tone Wheel Replacement Components With Torque Specifications

G06875106

Courtesy of HYUNDAI MOTOR CO.
