Roof Trim Assembly Replacement

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.

Remove the following items.
1. Sunvisor.
2. Overhead console.
3. Room lamp.
4. Assist handle.
Disconnect the cover (A) and ECM room mirror connector (B).

Fig 1: Identifying Cover And ECM Room Mirror Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the cover (A) and rain sensor connector (B).

Fig 2: Identifying Cover And Rain Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the wiring connector (A), mounting clips.
[Driver's]

Fig 3: Identifying Driver Wiring Connector
Courtesy of HYUNDAI MOTOR CO.

[Passenger's]

Fig 4: Identifying Passenger Wiring Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the antenna connector (A).

Fig 5: Identifying Antenna Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (B).

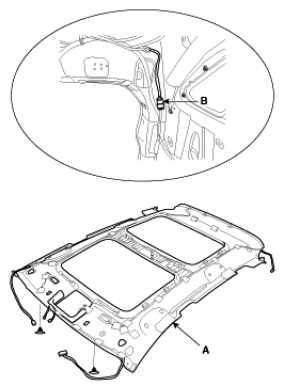

Disconnect the clips and then remove the roof trim (A).

Fig 6: Identifying Roof Trim And Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
