Rear Pillar Trim Replacement

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.

Remove the rear seat.
(Refer to the REAR SEAT .)
Remove the rear door scuff trim.
Detach the clips and then remove the transverse trim (A).

Fig 1: Identifying Transverse Trim
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting bolt, then remove the rear sent belt lower anchor (A).
Tightening torque:

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb.ft)

Fig 2: Identifying Rear Sent Belt Lower Anchor
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting bolts, then remove the rear seat bracket (A).

Fig 3: Identifying Rear Seat Bracket
Courtesy of HYUNDAI MOTOR CO.

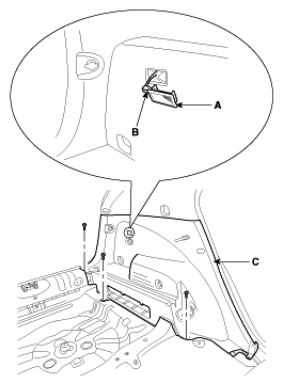

Using a screwdriver, remove the lamp (A).
Disconnect the connector (B).
After loosening the mounting screws, then remove the luggage side trim (C).

Fig 4: Identifying Luggage Side Trim, Lamp And Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 5: Identifying Electrical Connector
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting bolt and screws, then remove the rear pillar trim (A).

Fig 6: Identifying Rear Pillar Trim
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
