Luggage Side Trim Replacement

NOTE:
  • Put on gloves to protect your hands.
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the rear seat.

    (Refer to the REAR SEAT .)

  2. Remove the transverse trim.
  3. After loosening the mounting screws, then remove the luggage side trim.
  4. Installation is the reverse of removal.
    NOTE:
    • Replace any damage clips.

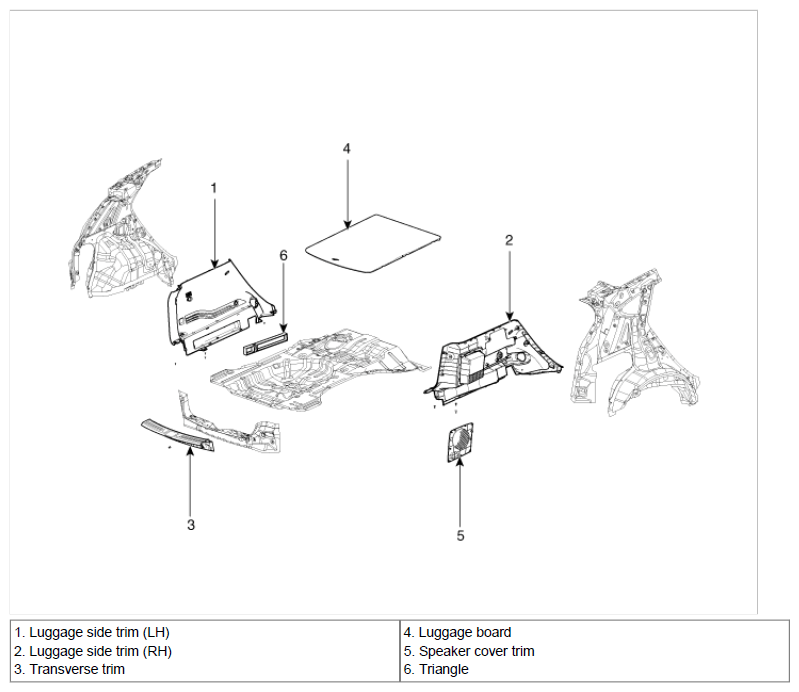

      Fig 1: Identifying Luggage Side Trim Components
      G06873450Courtesy of HYUNDAI MOTOR CO.
