Components Location

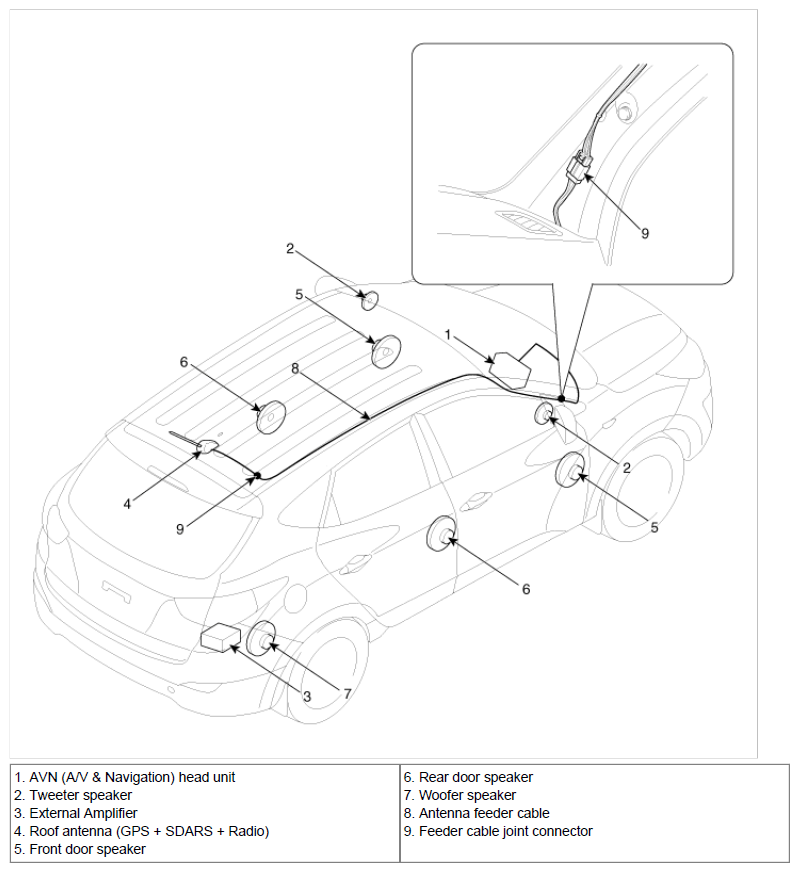

Fig 1: Identifying AVN System Components

G06873520

Courtesy of HYUNDAI MOTOR CO.

*SDARS: Satellite Digital Audio Radio Service
