Repair Procedures: Removal

Remove the front console assembly. (Refer to "INTERIOR " )
Remove the snap pin (A) and the clips (B).

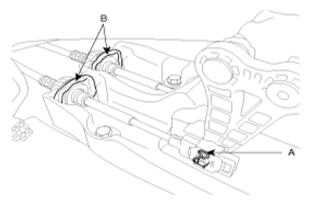

Fig 1: Identifying Snap Pin And Clips
Courtesy of HYUNDAI MOTOR CO.
Remove the clip (A) from the shift cable.

Fig 2: Identifying Clip
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever assembly (A).
Tightening torque:

8.8~13.7N.m (0.9~1.4kgf.m, 6.5~10.1Ib-ft)

Fig 3: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the retainer (A) and the nuts (B).
Tightening torque:

9.8~14.7N.m (1.0~1.5kgf.m, 7.2~10.8Ib-ft)

Fig 4: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR CO.
Remove the cable from the bracket at transmission side (Refer to "TRANSAXLE " ).
Remove the select cable and shift cable.
