Smart Key Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

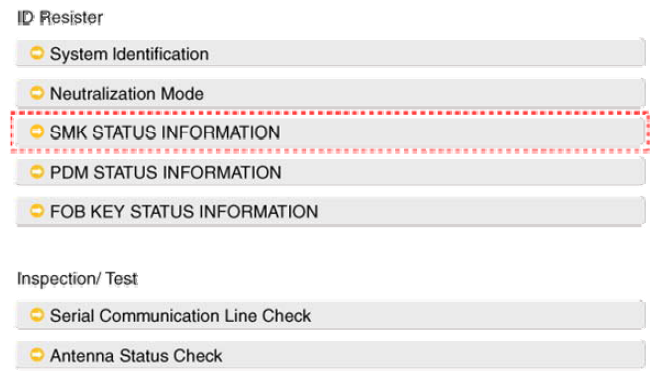

    Fig 1: Selecting SMK STATUS INFO
    G07318878Courtesy of HYUNDAI MOTOR CO.

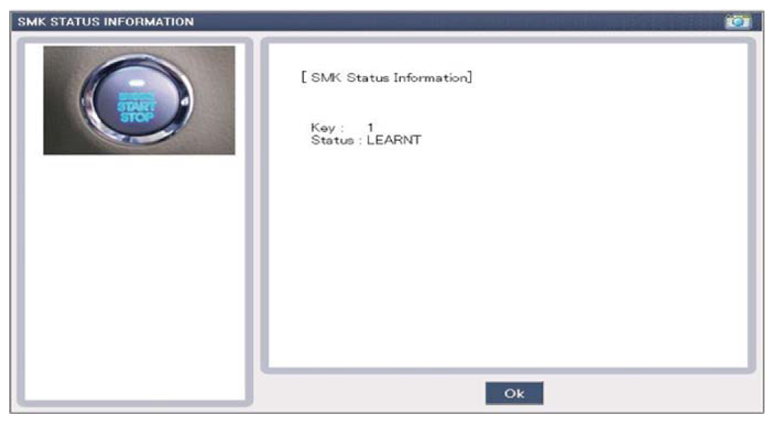

    Fig 2: Screen Display - SMK STATUS INFORMATION
    G07318879Courtesy of HYUNDAI MOTOR CO.
