PDM Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "PDM STATUS INFO".

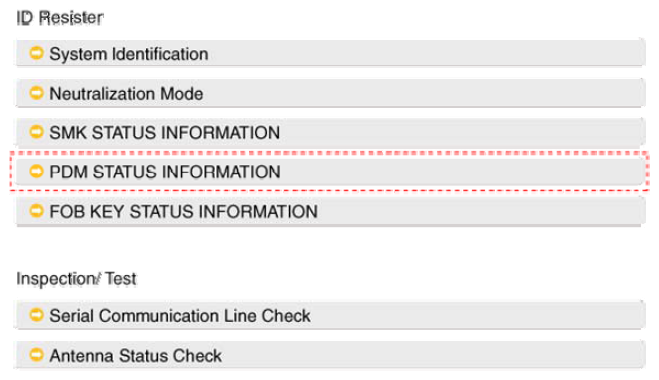

    Fig 1: Selecting PDM STATUS INFO
    G07318880Courtesy of HYUNDAI MOTOR CO.

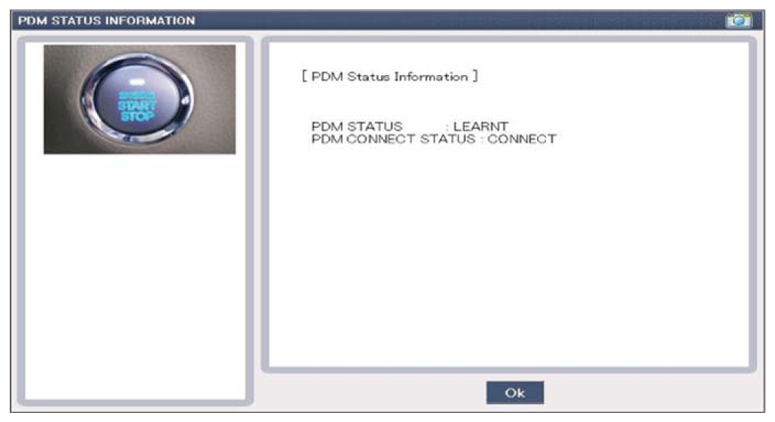

    Fig 2: Screen Display - PDM STATUS INFORMATION
    G07318881Courtesy of HYUNDAI MOTOR CO.
