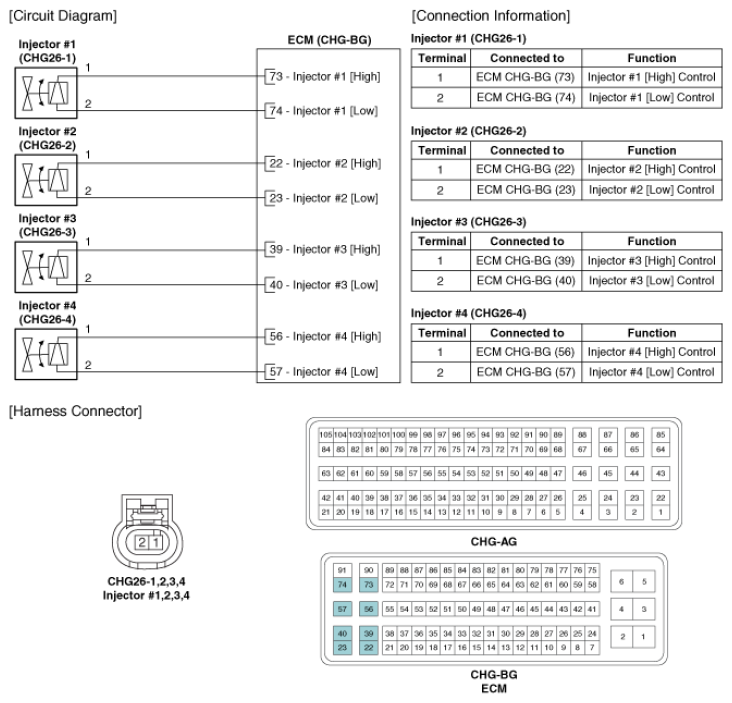

Home >> Hyundai >> 2012 >> Sonata GLS, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L (Except HEV) >> Injector >> Schematic Diagrams >> Circuit Diagram
