Home
>>
Hyundai
>>
2012
>>
Sonata GLS, Automatic Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows (Except HEV)
>>
Power Window Switch
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Driver Power Window Switch
Driver Power Window Switch

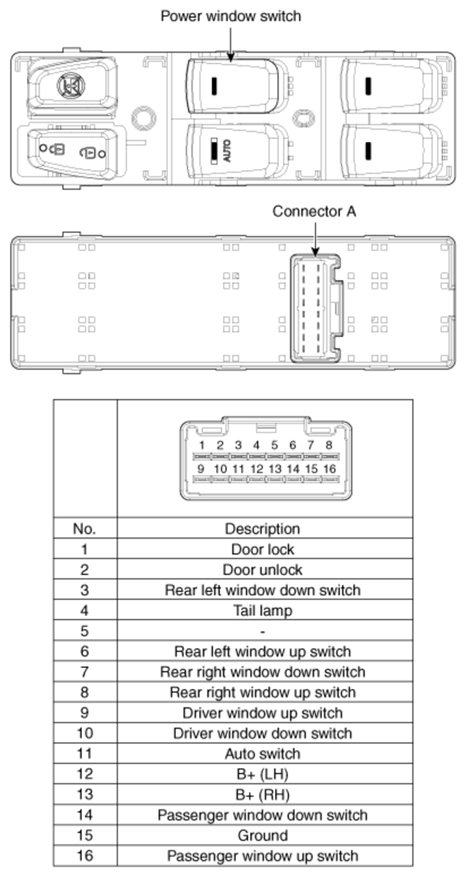

Fig 1: Identifying Driver Power Window Switch Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
