Rear Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the rear door trim panel.
(Refer to the "REAR DOOR ")
Disconnect the 8P connector from the switch.

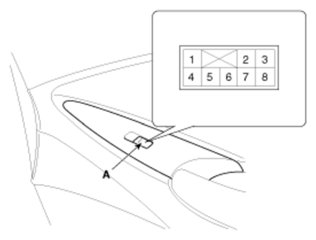

Fig 1: Identifying Rear Power Window Switch 8P Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

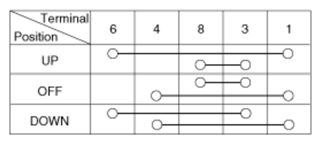

Fig 2: Rear Power Window Switch Terminal Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
