Front Power Window Motor Inspection

Remove the front door trim panel.
(Refer to the "FRONT DOOR ")
Disconnect the connector from the motor.

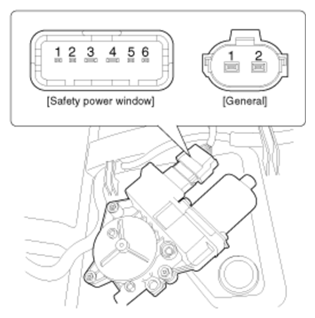

Fig 1: Identifying Front Power Window Motor Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Connect the motor terminals No. 2 and No. 3 directly to battery voltage (12V) and check that the motor operates smoothly.
If the operation is abnormal, replace the motor.

[Safety Power Window]

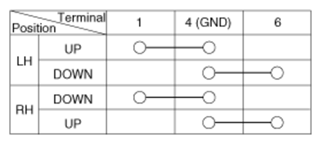

Fig 2: Safety Power Window Terminal Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

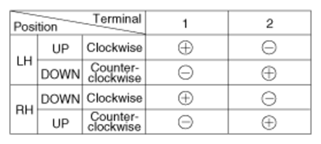

Fig 3: Front Power Window Motor Terminal Continuity Chart
