Transfer Oil Inspection

Transfer oil should be inspected and refilled every 30 months or 37, 500 miles.

Tightening torque:

Oil drain plug (A):

39.2~58.8N.m (4.0~6.0kgf.m, 28.9~43.4lb-ft)

Filler plug (B):

39.2~58.8N.m (4.0~6.0kgf.m, 28.9~43.4lb-ft)

[Gasoline 2.4]

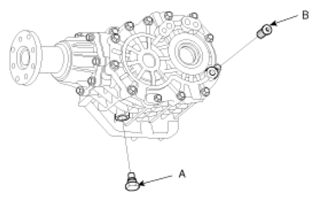

Fig 1: Identifying Oil Drain Plug And Filler Plug (Gasoline 2.4)

Courtesy of HYUNDAI MOTOR CO.

[Gasoline 3.5]

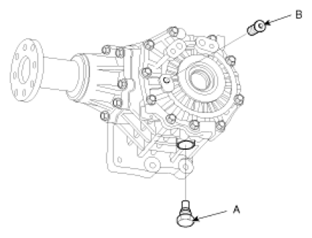

Fig 2: Identifying Oil Drain Plug And Filler Plug (Gasoline 3.5)

Courtesy of HYUNDAI MOTOR CO.
