Santa Fe SE, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
4WD Control System
>>
4WD Ecu
>>
Flow Diagram
>>
Power Flow Diagram
Power Flow Diagram

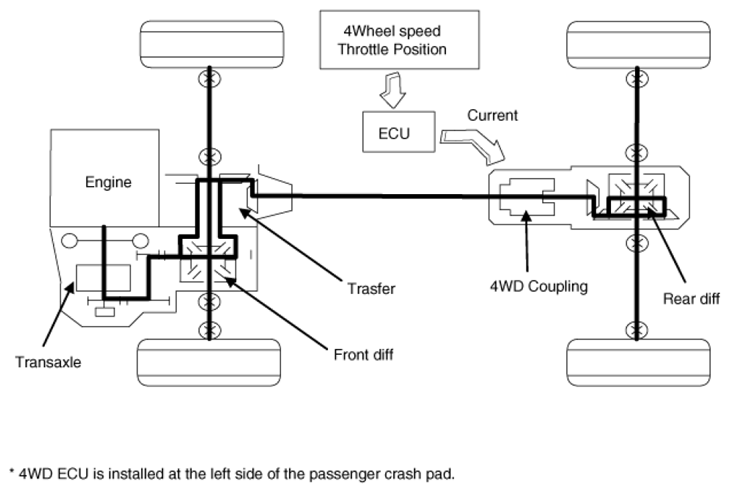

Fig 1: Power Flow Diagram Of 4 Wheel Drive Control
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
