Repair procedures: Replacement

  1. Remove the front bumper.

    (Refer to the "Front Bumper ")

  2. Remove the bolt and disconnect the horn connector, then remove the high pitch horn (A) and low pitch horn (B).

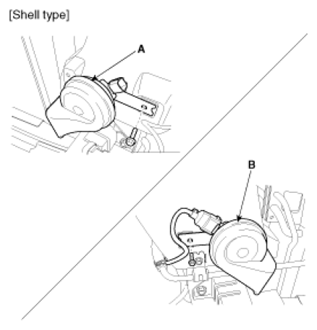

    Fig 1: Identifying High And Low Pitch Horn (Shell Type)
    G06847701Courtesy of HYUNDAI MOTOR CO.

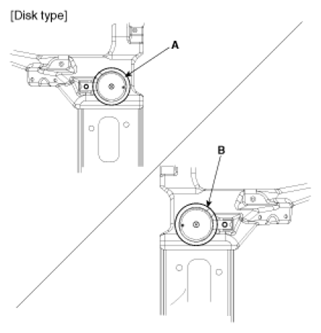

    Fig 2: Identifying High And Low Pitch Horn (Disc Type)
    G06847702Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
